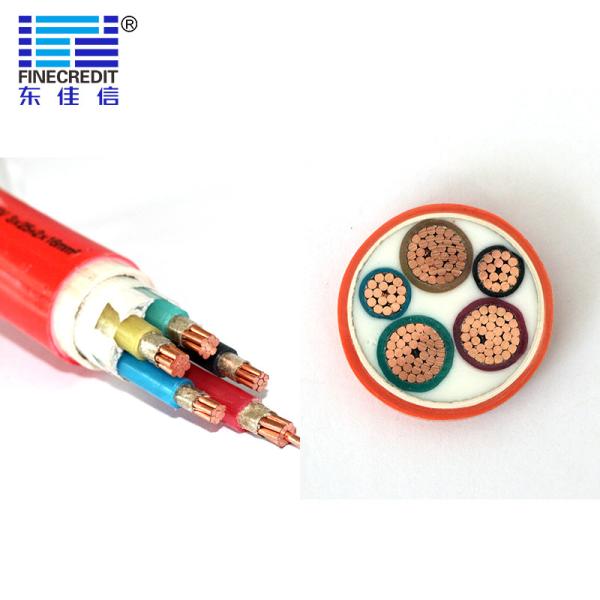

    3×25+1×16MM2 Multi Cores Fire Rated Data Cable LSZH 600/1000V DJXcable with Fire Protection

    Ask Lasest Price
    Brand Name : DONGJIAXIN
    Model Number : BBTRZ
    Certification : IEC, Rosh,CCC
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100KM/Week
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    3×25+1×16MM2 Multi Cores Fire Rated Data Cable LSZH 600/1000V DJXcable with Fire Protection

    Multi Cores Fire Rated Data Cable DJXcable with Fire Protection Cable Great Mechanical Strength


    This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 125°C Short-Circuit Temperature 250°C


    The design, construction and testing are compliant with international standard IEC60502 and testing standard BS6387,with standing temperatures of 950~1000 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.


    — Flame Retardant


    — High Operating Temperatures


    — LSOH Halogen-free


    — Great Mechanical Strength


    — Competitive Installed Cost


    — Public Places

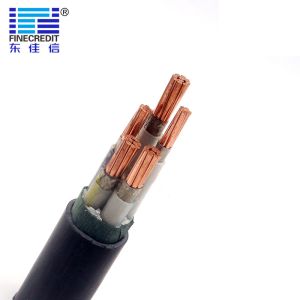

    5 Core Flame Retardant And Fire Resistant Cables IEC60502 Standard 0


    CABLE CONSTRUCTUR

    5 Core Flame Retardant And Fire Resistant Cables IEC60502 Standard 1

    1.1 GB/T 2951-2008

    1.2 GB/T 3048-2007

    1.3 BS 6837

    ConductorStranded bear copper
    Insulation (first layer)mica tape, flame retardant
    Insulation (second layer)Halogen-free cross-linked
    polyethylene (XLPE)
    Binder tapeglass-fibre tape
    FillerGlass yarns
    core wrapingglass-fibre tape as flame-protection
    Inner Sheathoxygen barrier layer
    SheathHalogen-free thermoplastic polyolefin
    Service Temperature90°C
    Max. conductor temp. in service125°C
    Short-Circuit Temperature250°C

    USAGE CHARACTERISTICS
    Service Temperature90°C
    Emergency Overload Temperature105°C
    Short-Circuit Temperature250°C
    Laying Temperatureshould not be lower than 0°C
    Minimum bending radius when layingSingle core: r = 6 x cable outer diameter
    Sheath colourThe standard color is orange, other colors are available.

    Production equipment:

    3×25+1×16MM2 Multi Cores Fire Rated Data Cable LSZH 600/1000V DJXcable with Fire Protection

    Service
    1. Customer is God. We will cherish every client, every cooperation by heart.
    2. Free pre-sales service. We will provide the best proposal for each client.
    3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
    technical advisory service when establishing cooperation relationships with clients.
    4. Product warranty period is 2 years.
    5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
    6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
